Production Logging
Unlock Downhole Flow Dynamics for Better Well Performance
At Reliance Oilfield Services, our Production Logging Tool (PLT) services deliver high-resolution, real-time insights into fluid velocity, phase holdup (oil, gas, water), pressure gradients, temperature anomalies, and zonal contributions in producing and injecting wells across Western Canada. These field-proven Production Logging Tools provide critical subsurface data to diagnose well performance issues. This includes quantifying true flow rates under downhole conditions, identifying inefficiencies like crossflow or unwanted fluid entries, and supporting targeted optimizations that enhance recovery, extend asset life, and reduce costs in mature basins.
With decades of expertise and the largest wireline fleet in the region, we deploy production logging solutions efficiently in vertical, deviated, and horizontal wells, even in remote or challenging locations throughout Alberta, Saskatchewan, British Columbia, Manitoba, Yukon, and the Northwest Territories. Our data-driven approach helps operators evaluate reservoir dynamics, monitor injection conformance, and make informed decisions for improved production profiling and well integrity.
Core Features of Our Production Logging Tool

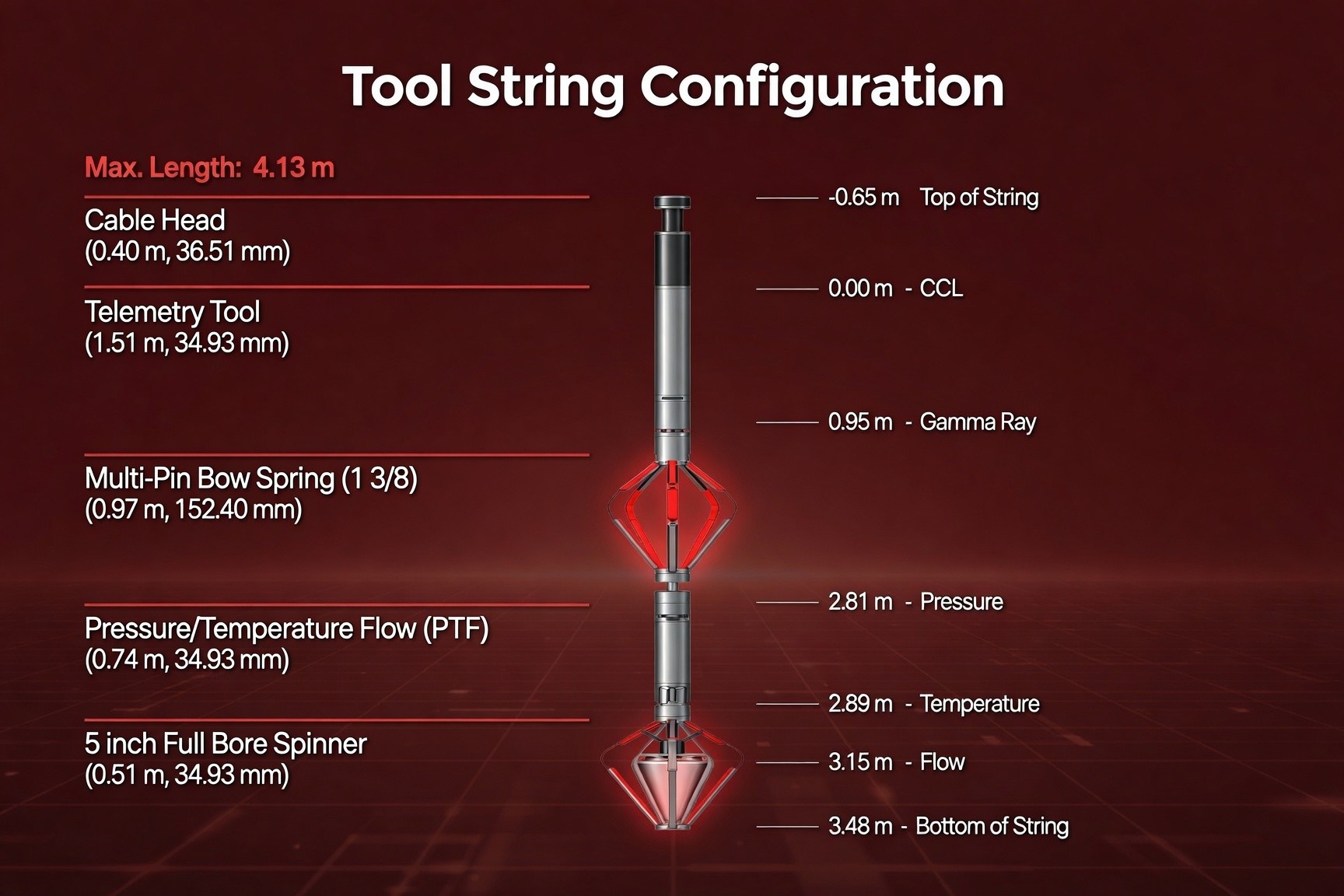

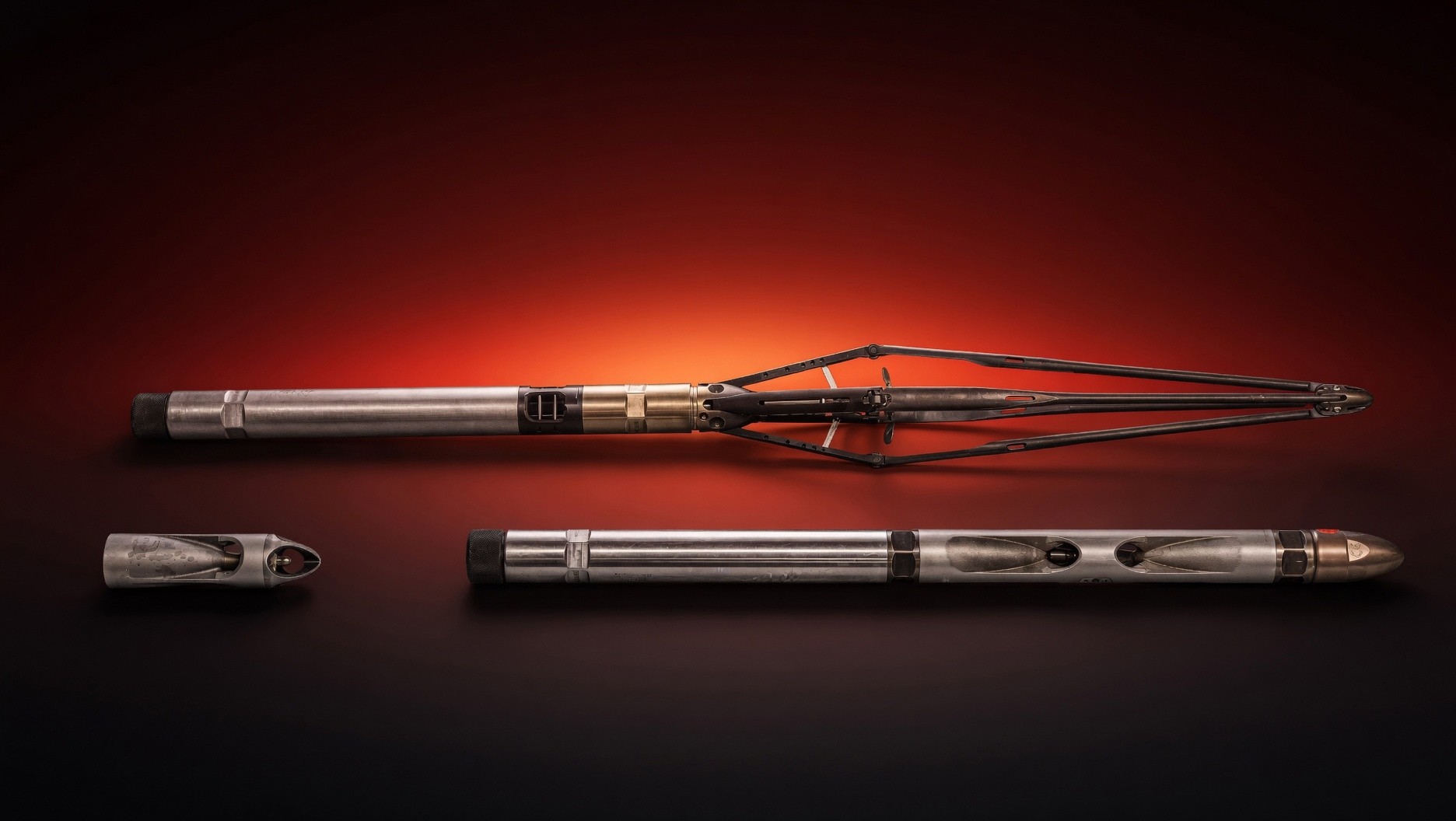

Our slim, robust Production Logging Tool strings integrate high-performance sensors for accurate multiphase measurements in demanding conditions:
Spinner Flowmeters — Continuous Inline Spinner (high-velocity or restricted zones) and Fullbore Spinner (collapsible options expand to capture true cross-sectional fluid velocity and bidirectional flow direction), enabling precise rate allocation.
Fluid Holdup & Phase Identification — Capacitance/dielectric sensors distinguish water (high dielectric), oil (medium), and gas (low) phases for detailed holdup profiling; non-radioactive gradiomanometer/differential pressure tools provide high-resolution fluid density (0.001 g/cc resolution, ±0.03 g/cc accuracy) to pinpoint interfaces and support multiphase interpretation.
Pressure & Temperature Sensors — Quartz pressure transducers and high-resolution RTD/fast-response temperature sensors detect gradients, inflow/outflow points, Joule-Thomson cooling/heating effects, and thermal anomalies for enhanced diagnostics.
Depth Correlation & Auxiliary Sensors — Gamma Ray and Casing Collar Locator (CCL) for exact positioning and formation referencing; optional caliper for borehole size assessment.
Compact, Versatile Design — Slim 1.375"–1.688" OD for through-tubing efficiency; combinable with other tools for integrated runs.
Environmental Ratings — Up to 15,000 psi (103 MPa) pressure and 350°F (177°C) temperature; fully H₂S/CO₂ rated for sour wells.
Data Modes — Real-time SRO or memory recording, with telemetry compatibility for seamless surface systems.
Flexible Conveyance Options
We offer straightforward deployment choices for production logging, based on real-time needs and well environment:
Real-time Surface Readout (SRO) — Available on Electric Line (E-Line) or Electric Line Coiled Tubing (E-Coil) for live data transmission and immediate monitoring/adjustments during operations.
Memory Mode — Available on Slickline (harsh environments H₂S and/or CO₂ concentrations) or Coiled Tubing for standalone recording, with data downloaded post-run.
Key Benefits & Applications
Drawing from industry-leading practices, our Production Logging Tool services provide superior value by helping operators:
Quantify Zonal Contributions — Accurately measure flow rates, fluid types, and phase distribution zone-by-zone to allocate oil, gas, and water production/injection; essential for reservoir monitoring and performance evaluation.
Diagnose Well Issues — Detect unwanted fluid entries (e.g., water coning, gas breakthrough, high water-cut), crossflow between intervals, channeling, tubing/packer leaks, or mechanical restrictions to prevent costly downtime and optimize interventions.
Evaluate Reservoir Dynamics — Assess inflow/outflow performance, productivity index, and injection profiles for enhanced oil recovery (EOR), waterflood, or gas injection programs, ensuring conformance and maximizing sweep efficiency.
Support Well Integrity & Remediation — Identify behind-casing flow, leaks, or integrity concerns with integrated sensors, enabling proactive decisions for workovers, stimulations, or zonal isolation.
Enhance Recovery & Efficiency — Provide baseline data, post-stimulation verification, and time-lapse monitoring to extend well productive life, reduce emissions, and lower operational costs in mature Western Canadian plays.
Minimize Risks — High-sensitivity tools capture subtle multiphase behaviors even in low-flow or quiet conditions, delivering verifiable, high-quality data for faster, more confident actions.
From Acquisition to Actionable Insights

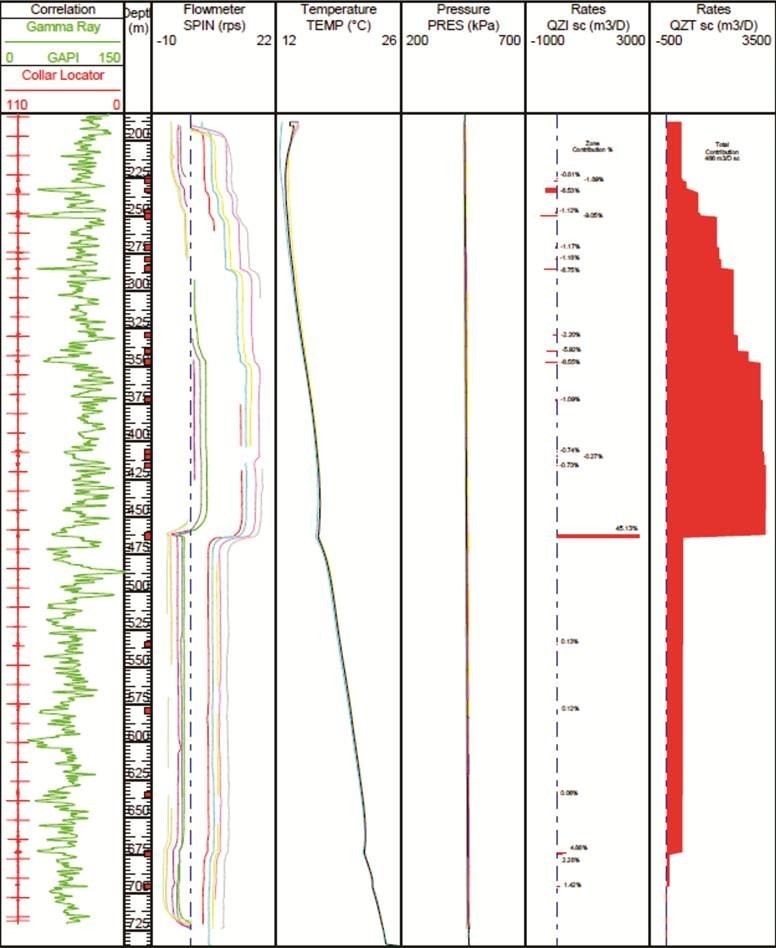

We perform multi-rate, multi-pass logging (flowing/shut-in) for robust validation, then process data with advanced interpretation software to deliver clear reports including flow profiles, holdup cross-sections, velocity curves, phase distribution visuals, quantitative allocation tables, and fluid regime analysis (e.g., bubbly, slug, annular flow). Our experts provide tailored recommendations for remedial work, stimulation, or enhanced recovery, turning complex downhole challenges into resolved opportunities.
Inquire production logging
